Building a Multi-Building Commercial Campus from the Ground Up

When a business acquires a new multi-building facility, the excitement is real. But with that opportunity comes a question that separates serious operators from those who will be ripping things out and starting over in two years: Are you going to do this right?

That was the question in front of our client when they took possession of a three-building commercial campus. The buildings were theirs. Everything else — the network, the security, the access control — was a blank slate. No legacy system to work around, no previous contractor decisions to live with. A genuine ground-up build.

The Challenge of Getting a Multi-Building Campus Right

Three buildings on one property sounds manageable until you start thinking through the details. How do employees move between buildings? Who has access to which doors and how do you track that? How are your warehouse operations being monitored? What happens when something goes wrong at 2 a.m. and you need to know exactly what happened?

A new facility does not come with answers to those questions. It comes with the opportunity to answer them correctly once with infrastructure that scales as the business grows. The risk is not spending too much. The risk is spending wrong: cheap gear that does not integrate, systems that do not talk to each other, a camera system that covers the parking lot but misses the loading dock. We were brought in to make sure none of that happened.

Design First, Then Execute

Before a single cable was pulled, we mapped the campus. Every building entry. Every interior zone. Every chokepoint where access needed to be controlled or activity needed to be documented. We designed the network to carry the load not just today's load, but the load this business will put on it in three years.

This is the work that does not show up in a line-item quote but determines whether a project succeeds. It is why Clear Telecommunications does not show up with a truck and start drilling. We show up with a plan.

The Foundation: A 10G Fiber Optic Backbone

Everything on this campus runs better because of what is underneath it. We ran single-mode fiber between all three buildings, creating a dedicated high-speed backbone that ties the campus together at 10 gigabits per second.

That backbone changes what is possible. Security camera footage from any building streams without bottleneck. Access control events are logged in real time across the campus. The WiFi is consistent whether you are in Building 1 or Building 3.

On top of the fiber backbone, we deployed a full UniFi wired and wireless network throughout all three buildings: structured cabling to every required location, UniFi switches managing the LAN, and UniFi access points providing reliable wireless coverage across the entire footprint. The result is a campus network that performs like a single, well-run facility rather than three buildings stitched together with compromise.

Access Control: Who Entered, Which Door, and When

Managing physical access across three buildings is a real operational challenge. Traditional keys and fob systems do not scale, do not log, and do not give you the visibility a growing business needs. We deployed UniFi Access on the primary entry doors of each building, giving ownership and management a complete, auditable record of who accessed what and when.

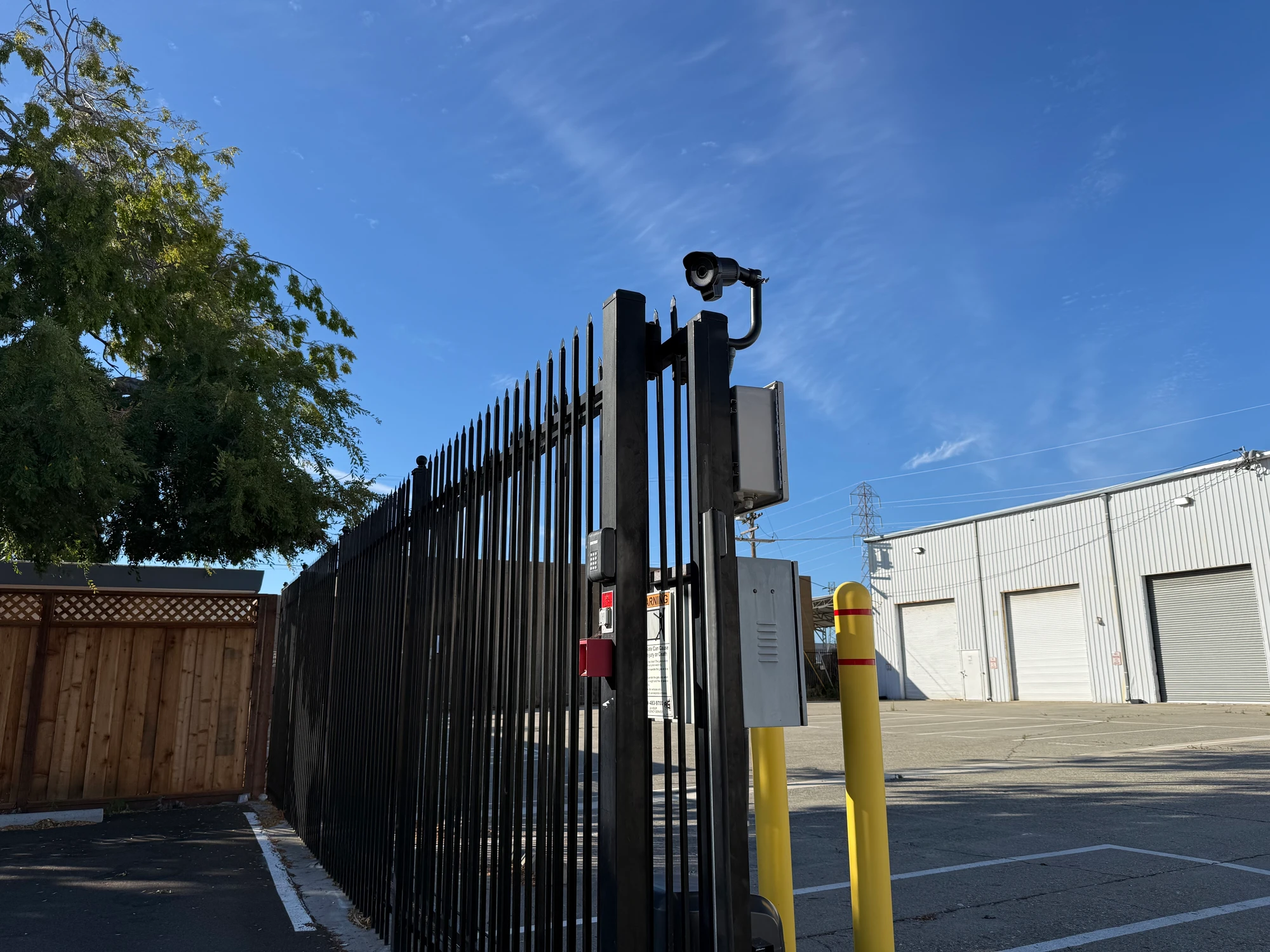

At the main entry gate, we went further. A license plate reader provides automated vehicle recognition at the campus perimeter, a critical layer of access intelligence for a facility where vehicle traffic matters. Combined with the door-level access control inside, the client now has a complete picture of who comes onto the property from the gate to the building door.

The system is managed from a single platform. Adding a user, revoking access, pulling an entry log: it takes seconds, not a phone call to a locksmith.

25 Cameras: Full Coverage, Inside and Out

Security cameras are often treated as an afterthought. That approach does not work for a commercial campus, and it especially does not work when a significant portion of your square footage is active warehouse space.

We deployed 25 UniFi Protect cameras across the campus. The full perimeter of all three buildings is covered. Every exterior approach, loading area, and entry point is visible. Inside, the warehouse spaces which represent roughly two-thirds of the total facility are covered with purpose: not just for after-the-fact incident review, but for live operational awareness.

Warehouse footage is a management tool. It answers the questions that do not always get raised in a meeting: Is that area being staged correctly? Was the loading dock clear before the truck backed in? What actually happened during that shift? The camera system gives operators the visibility to run a tighter operation, not just document incidents.

All 25 cameras are managed through UniFi Protect: a unified platform that handles live viewing, recording, alerts, and access from any device, anywhere. No third-party NVR juggling. No subscriptions per camera. One system, fully integrated with the network it runs on.

What the Client Has Now

On day one of operations, this client has something most businesses spend years trying to retrofit: a fully integrated commercial campus where the network, access control, and security cameras are designed together, installed together, and managed together.

They know who is on the property. They can see every corner of their warehouse in real time. Their team moves through the buildings on smart access credentials that can be updated instantly. And all of it runs on a 10G fiber backbone that will not be a bottleneck when the business grows.

That is the difference between doing it right and doing it cheap.
